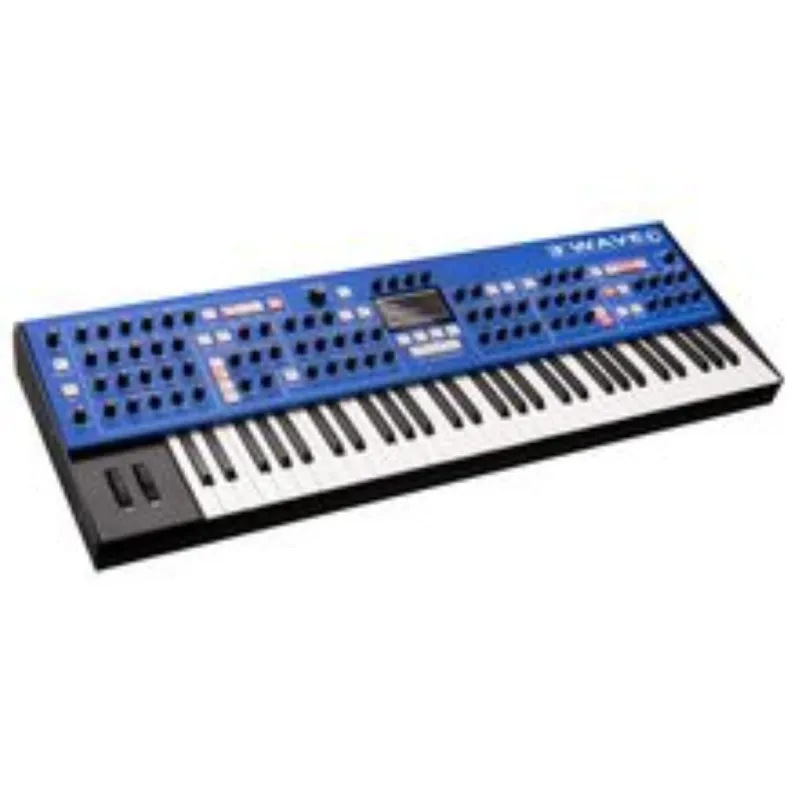

Groove Synthesis 3rd Wave
Hybrid Wavetable Synthesizer
- 24-Voice polyphonic
- 4-Part multitimbral
- 3 Digital oscillators per voice
- 64 User wavetable positions with 48 wavetables with 64 waveforms per table
- 32 Original 8-bit wavetables of the PPG2 instruments
- 7 Modelled analogue waveforms (Sine, Saw, Triangle, Supersaw, Pulse, White Noise, Pink Noise)
- VCO sync
- Linear FM
- Analogue low-pass filter (Dave Rossum design)
- State-variable filter
- 4 x ADSR+ delay envelopes
- 4 x LF oscillators (Triangle, Sawtooth, Reverse Sawtooth, Square, Pulse 1, Pulse 2, Pulse 3 and Random (S&H))
- 2 Digital effects processors (BBD, Stereo Delay, Tape Delay, Chorus, Phaser, Flanger, Distortion Pedal, Rotating Speaker, Ring Mod, Room Reverb, Hall Reverb, Super Plate Reverb)
- Built-in Custom Wavetable Maker 16-bit / 96 kHz (sample-to-wave function)
- Sequencer (4 multi-part songs per programme, 24 sequences per song)
- Arpeggiator
- 16-Slot modulation matrix per multi-part
- 77 Knobs and 39 buttons
- Pitch and mod wheels
- 61-Key velocity-sensitive Fatar keyboard, semi-weighted with aftertouch
- 500 Presets (can be overwritten by user presets)
- Built-in power supply 100 - 240V, 50 - 60 Hz, 65 Watt
- Line output: 8 x 6.3 mm jack (4 x stereo L/R )
- Stereo headphone output: 6.3 mm jack
- MIDI In / Out / Thru
- USB MIDI
- Line input: 6.3 mm jack
- Pedal input: 6.3 mm jack for sustain/foot switch
- Volume and expression pedal input: 6.3 mm jack
- Dimensions (W x D x H): 978 x 362 x 127 mm
- Weight: 12.3 kg
