Descrizione
Sistema Wireless Per Chitarra

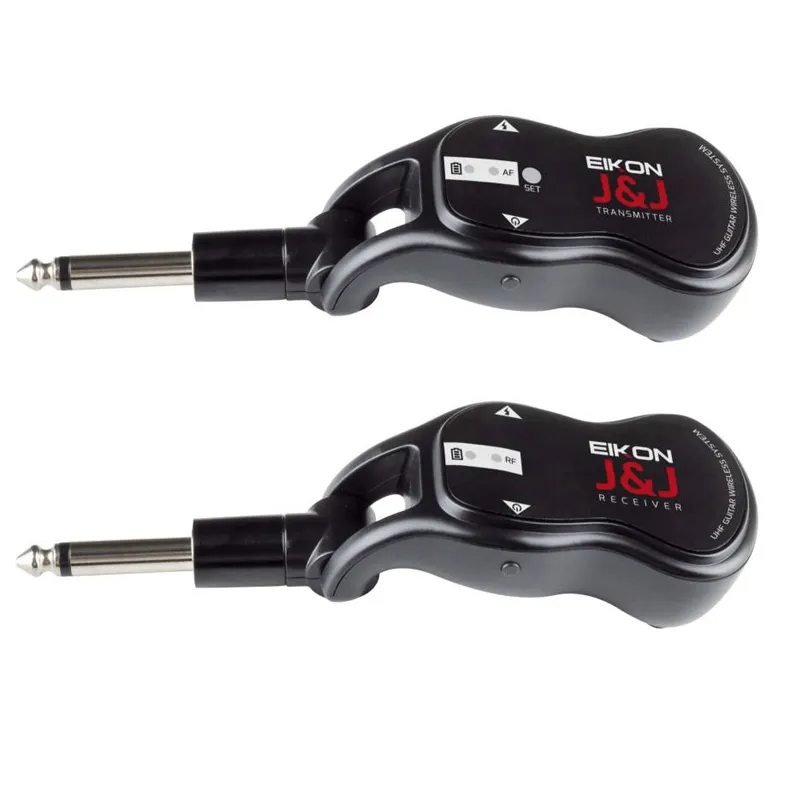

EKJ&J è un sistema per chitarra wireless UHF controllato al quarzo che fornisce una trasmissione del segnale affidabile e di alta qualità. EKJ&J è dotato di 3 unità: trasmettitore EKJ&J compatto "formato connettore", ricevitore EKJ&J compatto "formato connettore" e cavo di ricarica da USB a USB-C.
Specifiche Tecniche
EKJ&JUHF PLL 16 Channel Transmitter
- RF Channels: 16 frequency presets
- RF Frequency Band : UHF 863-865 MHz
- RF Frequency Stability: ±0,002%
- RF Oscillation Mode: Quartz locked
- RF Modulation Type: Wideband FM Stereo
- RF Output Power: 10mW
- Sub-harmonic: < 40 dB
- Operating current: 120 mA
- Operating Time: 3 to 5 hrs
- Operating Power Supply: 3.7 V / 500 mA - built-in Lithium battery
- Charging mode: USB charging 5Vtype C connector
- Charging time: 3 hours
- Weight: 0.05 Kg
EKJ&J UHF PLL 16 Channels Receiver
- RF Channels: 16 frequency presets
- RF Frequency Band: UHF: 863-865 MHz
- RF Frequency Stability: ±0,005%
- RF Oscillation Mode: Quartz locked
- RF Modulation Type: Wideband FM Stereo
- RF Receiving Sensitivity: < -98 dBm
- RF Receiving range: 15 to 30 meters depending on used band conditions
- Audio dynamic range: 106 dBm
- THD Distortion: < 0.5%
- S/N Ratio: 102 dBA
- Audio output connector: 6.3 mm Mono Jack
- Output Power Max (continuous): 400 mW
- Operating current: 80 mA
- Operating Time: 5 hours
- Operating Power Supply: 3.7 V / 500 mA - built-in Lithium battery
- Charging mode: USB charging 5Vtype C connector
- Charging time: 3 hours
- Weight: 0.05 Kg
